How Proxies Work: Connection Flow, IP Masking, Rotation, and Authentication

A proxy server acts as an intelligent intermediary between your device and the internet. Instead of connecting directly to a website or API, your request is routed through the proxy, which forwards and manages the connection on your behalf.

This redirection has powerful implications. It hides your real IP address, controls how and where traffic flows, and enables better privacy, performance, and reliability—especially for automation and large-scale data operations.

In 2025, understanding how proxies work is essential for managing modern data pipelines, from AI training workflows to enterprise-grade automation systems.

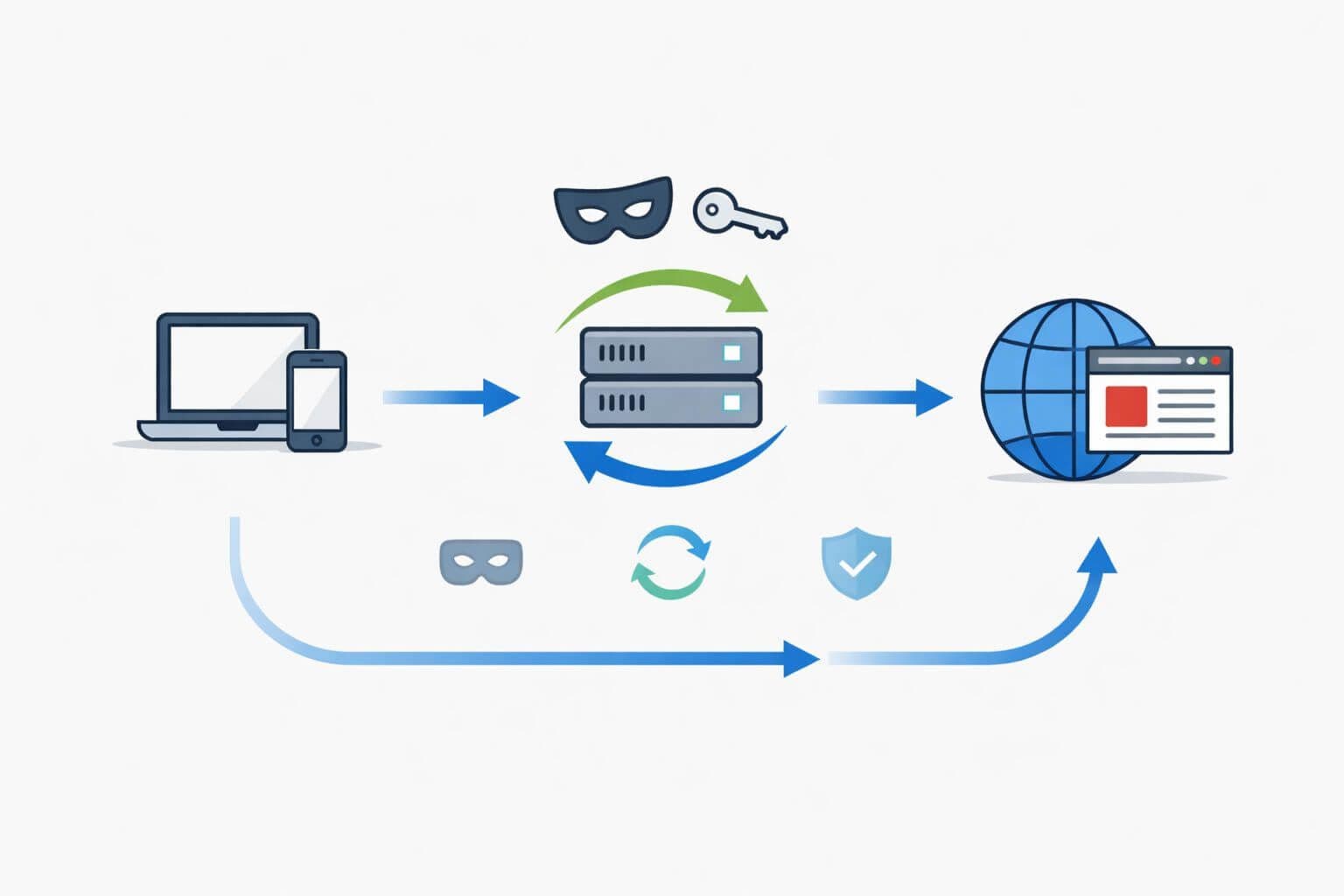

The proxy connection flow

Whenever you access a website or API through a proxy, the request follows this path:

Your Device → Proxy Server → Target Website → Proxy Server → Your Device

Step-by-step, here’s what happens:

1. You send a request
   For example, loading example.com in a browser or via a script.

2. The proxy receives and processes the request
   It masks your IP, applies headers, or enforces routing rules.

3. The proxy forwards the request
   The destination receives it as if it originated from the proxy.

4. The website responds
   The server only sees the proxy’s IP address, not yours.

5. The proxy relays the response
   Data is returned securely and transparently to your device.

This workflow gives you precise control over how your traffic appears to external servers.

👉 Start here: What Is a Proxy?

Key components of a proxy system

A complete proxy setup consists of several coordinated layers:

Together, these components enable controlled, anonymous, and optimized network routing.

👉 Continue: Proxy Authentication Methods

Proxy request and response flow (visual overview)

Below is a simplified representation of the full communication loop:

┌────────────────────┐
│     Your Device    │
│  (Browser / Script)│
└─────────┬──────────┘
          │ Request
          ▼
┌────────────────────┐
│    Proxy Server    │
│ Masks IP, Logs,    │
│ or Rotates Traffic │
└─────────┬──────────┘
          │ Forward
          ▼
┌────────────────────┐
│   Target Website   │
│  (Sees Proxy IP)   │
└─────────┬──────────┘
          │ Response
          ▼
┌────────────────────┐
│   Proxy Returns    │
│   Data to Client   │
└────────────────────┘

Each hop adds flexibility—such as logging, caching, IP rotation, or filtering—depending on the proxy type and configuration.

👉 Compare options: Types of Proxies Explained

Types of traffic handled by proxies

Proxies operate at different network layers, depending on protocol support:

Application-layer proxies are ideal for web traffic, while SOCKS proxies handle nearly any network connection—making them popular for developers and automation tools.

How proxies provide privacy and control

Proxies deliver security and flexibility through several core mechanisms:

1. IP masking
   Replaces your real IP with the proxy’s IP.

2. Traffic filtering
   Allows or blocks destinations, ports, or request types.

3. Caching
   Speeds up repeated requests by storing common responses.

4. Request routing
   Directs traffic through specific regions or networks.

These capabilities make proxies indispensable for teams handling high-volume, geo-distributed, or sensitive traffic.

The role of proxy rotation

Repeated requests from a single IP can trigger rate limits, CAPTCHAs, or bans. Rotating proxies prevent this by automatically assigning a new IP per request or per session.

Example: rotating proxies with Python requests

import requests

proxy_pool = [
    "http://ip1.proxyserver.com:8000",
    "http://ip2.proxyserver.com:8000",
    "http://ip3.proxyserver.com:8000"
]

for proxy in proxy_pool:
    response = requests.get(
        "https://httpbin.org/ip",
        proxies={"http": proxy, "https": proxy},
        timeout=10
    )
    print(response.json())

👉 Next: Testing and Validating Your Proxies

Proxy authentication and security

Most proxy providers require authentication to prevent abuse. The two most common methods are:

Proper authentication protects proxy resources from unauthorized use and traffic hijacking.

👉 Read next: Choosing the Right Authentication Method

Why proxies matter in modern data and AI workflows

Today, proxies are a critical infrastructure layer for:

• AI training pipelines – collecting geographically diverse data
• SEO and eCommerce monitoring – simulating real-user behavior
• Cybersecurity testing – anonymized threat analysis
• Automation systems – running scripts safely at scale

Without proxies, these operations risk blocking, throttling, or compliance failures.

👉 Deep dive: Proxy vs VPN vs Tor

Best practices for efficient proxy usage

• Choose providers with high uptime and low latency
• Use IP rotation for scraping and automation
• Respect robots.txt and site terms of service
• Monitor proxy health and retire flagged IPs
• Maintain logs for debugging and performance tuning

Key takeaways

• Proxies relay traffic between users and the internet, masking identity
• They improve privacy, access control, and automation reliability
• Proper configuration ensures stable, compliant usage
• Rotating proxies are essential for large-scale, multi-region workloads
